ACSL SOTEN Inspection Package – Japan-Made Inspection Drone
$10,779.00
Not in stock today
Ask about this item
Or call us on 440-420-0200.
Lead time
Confirmed in writing with your quote.
Purchase orders
Ask us before you raise one.
Repaired in Akron
Yes19,000 sq ft, in-house parts department.
Pairs well with
About this item

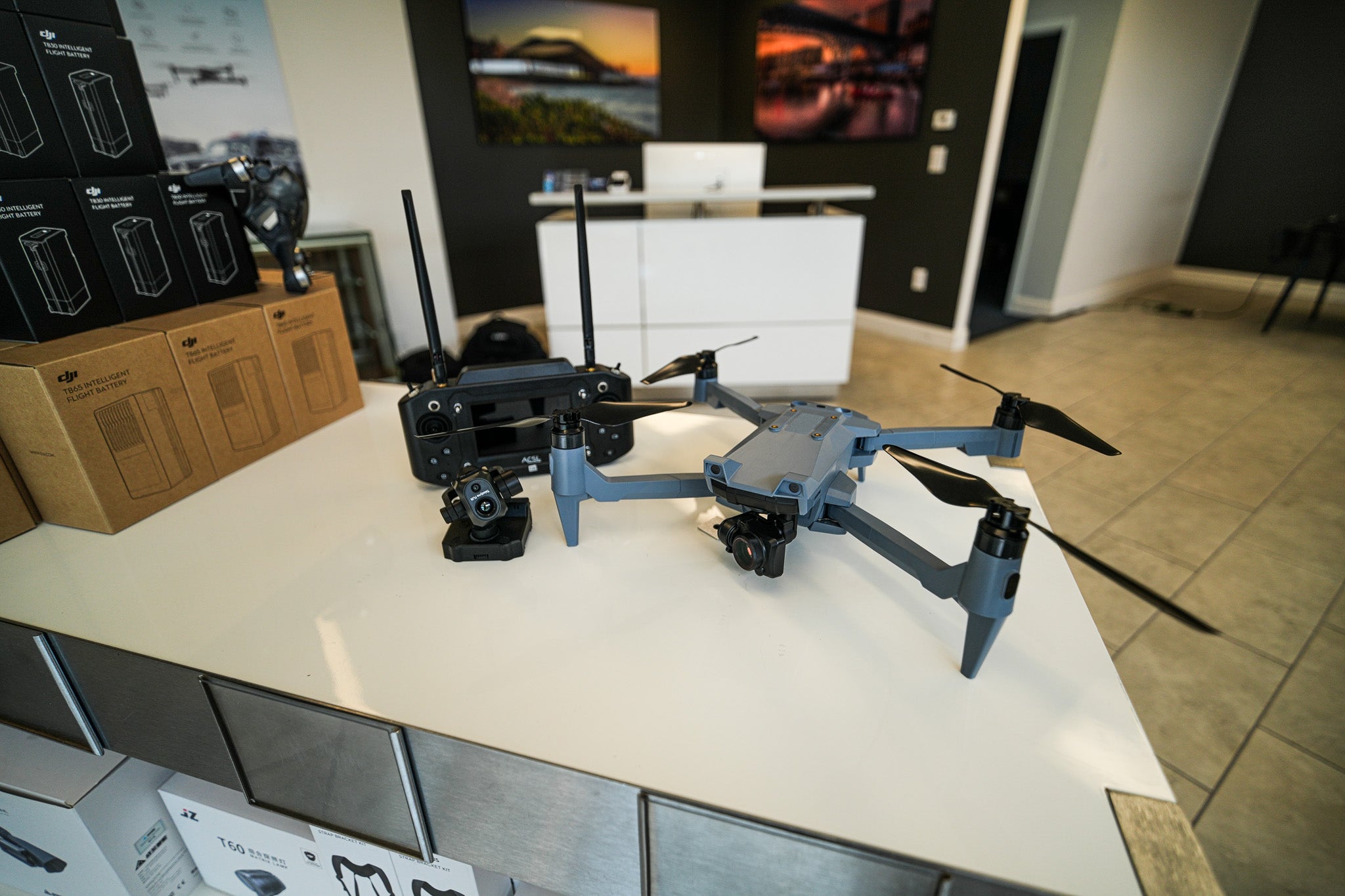

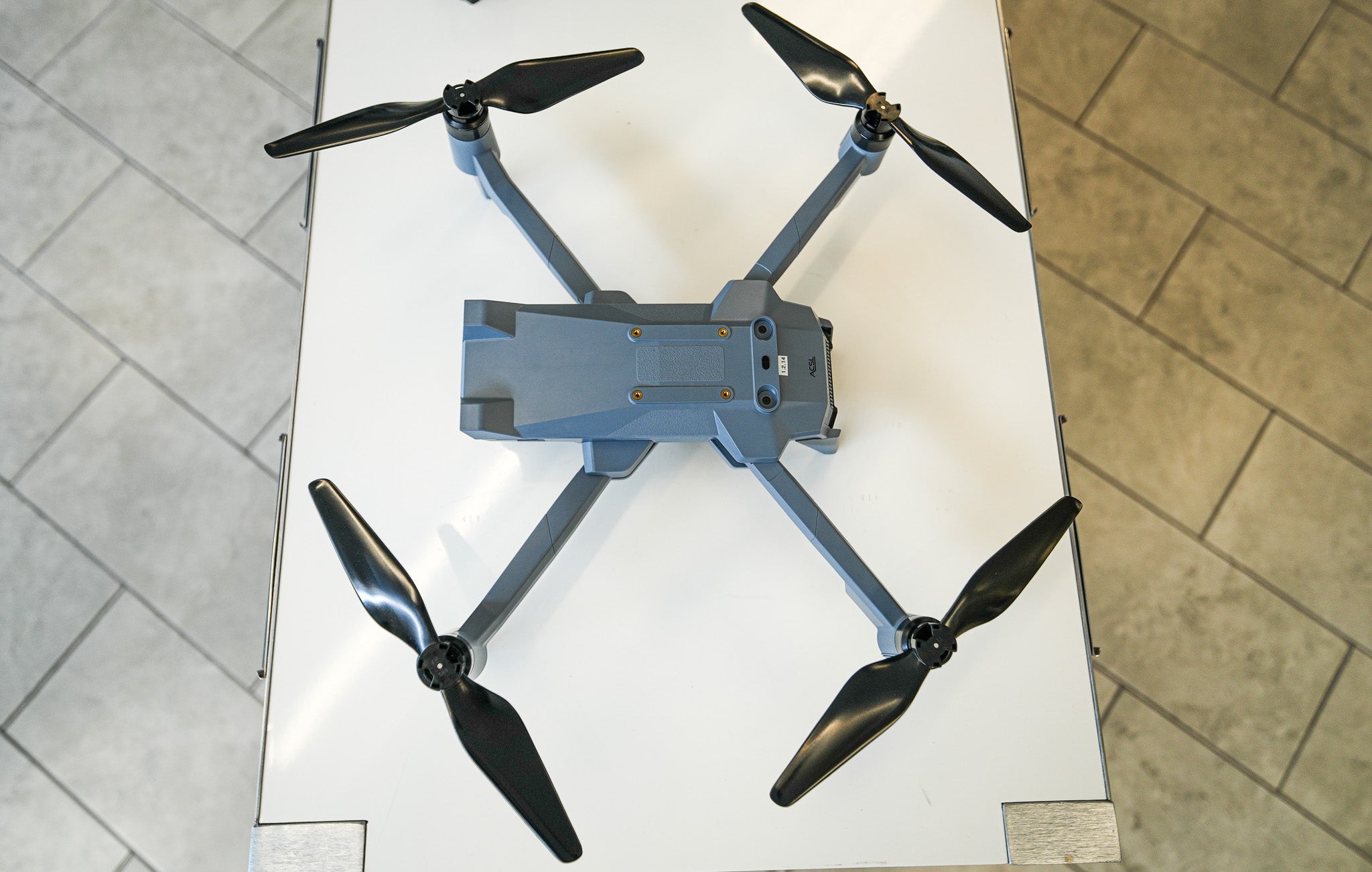

The ACSL SOTEN is a compact, Japan-made drone for infrastructure inspection and site surveys. It uses one-touch swappable cameras, encrypted communications, and offline maps for autonomous flight without internet access.
Specs
- Standard camera: 1-inch 20 MP sensor with mechanical shutter; 4K/30fps video; JPEG, RAW, or both

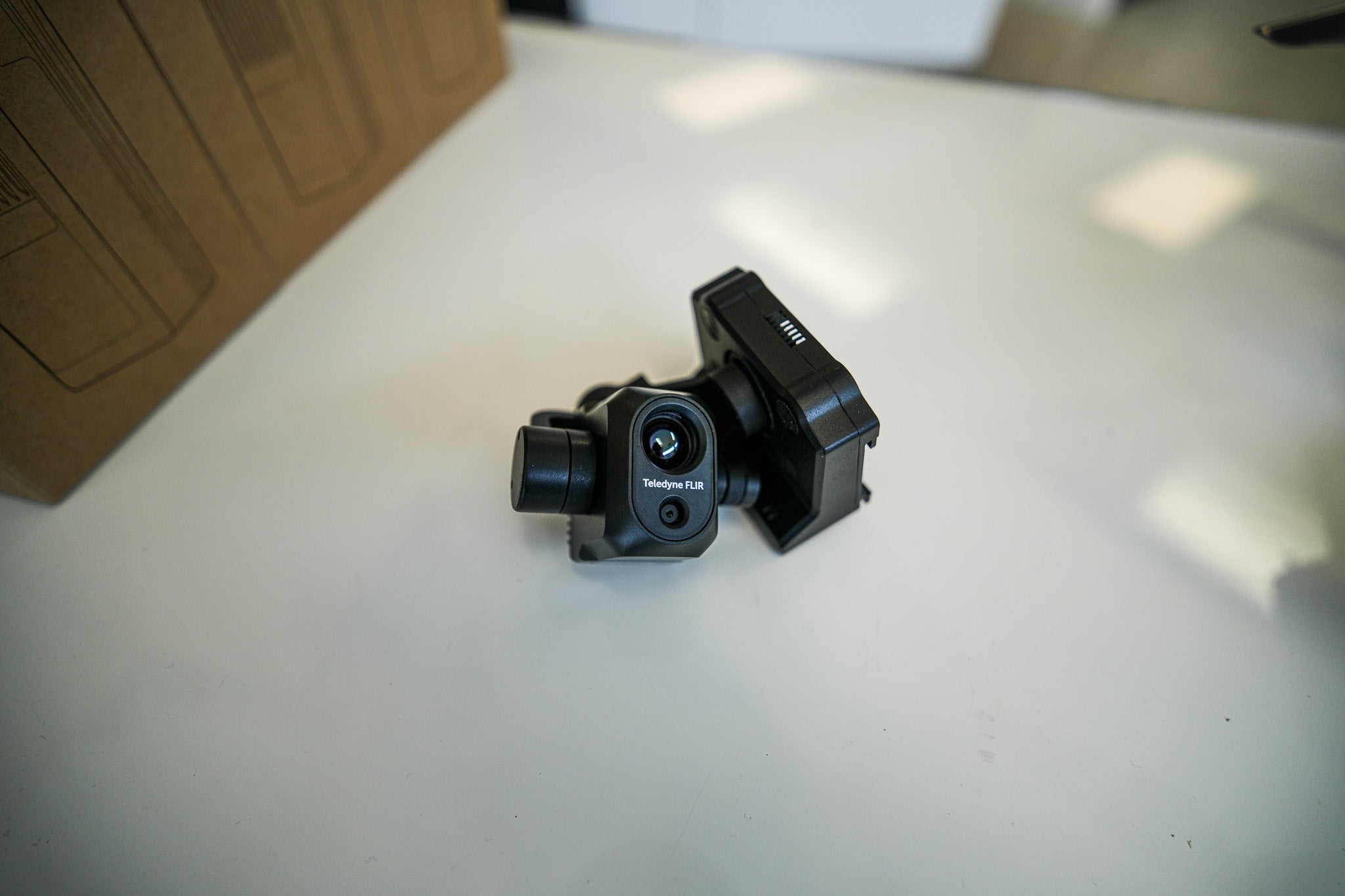

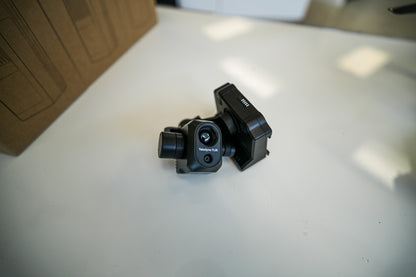

- Optional cameras (ACSL): thermal + visible, multispectral, optical zoom
- Max flight time: 25 min with the standard camera at 8 m/s (18 mph) airspeed
- Max airspeed: 15 m/s (33.5 mph). Max wind speed: 10 m/s (22 mph)
- Ingress protection: IP43 (with camera, gimbal, and battery installed). Operating temperature: -20 °C (conditional) to 40 °C
- Weight: 1.72 kg (3.8 lb) with standard camera and battery. Max takeoff weight: 2.0 kg (4.4 lb)
- Range: up to 4 km (2.5 mi). ACSL proprietary radio, 2.412–2.477 GHz
- GNSS: GPS + QZSS (+ SBAS). Obstacle sensing: vision (front, top, bottom), infrared (top, bottom)
- Security: encrypted communications and SD-card recording; drone–controller pairing

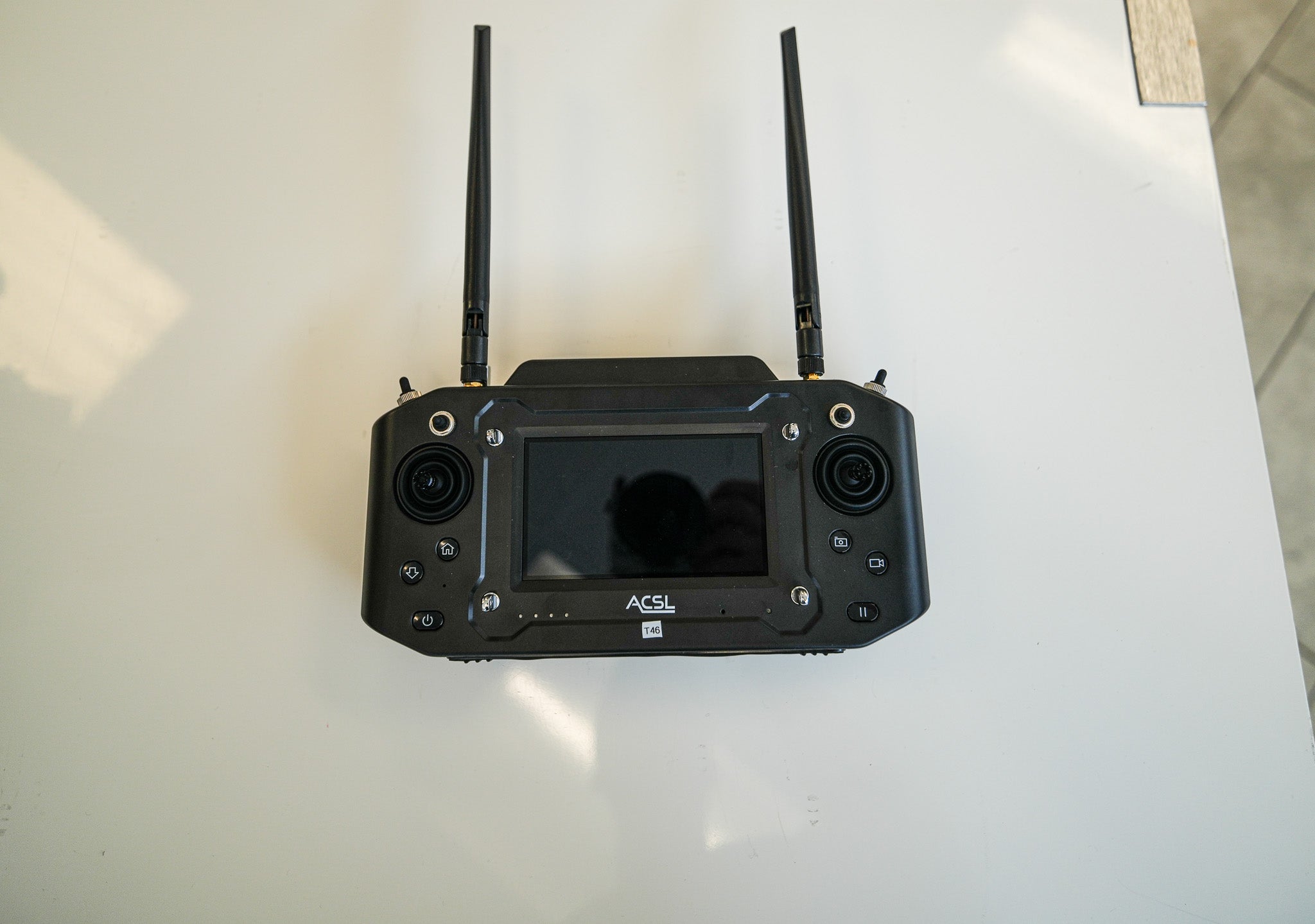

- Multi-pilot: control can pass in flight between up to 3 controllers; all receive video and telemetry
Ohio Drone Repair is an Authorized ACSL Dealer & Repair Center.
Repaired here, too.
If it ever needs work, it comes back to the same shop in Akron that sold it.
