DJI Manifold 3 Onboard Computer
Call for price
Not in stock today
Lead time
Confirmed in writing with your quote.
Purchase orders
Ask us before you raise one.
Repaired in Akron
Yes19,000 sq ft, in-house parts department.
Pairs well with
About this item

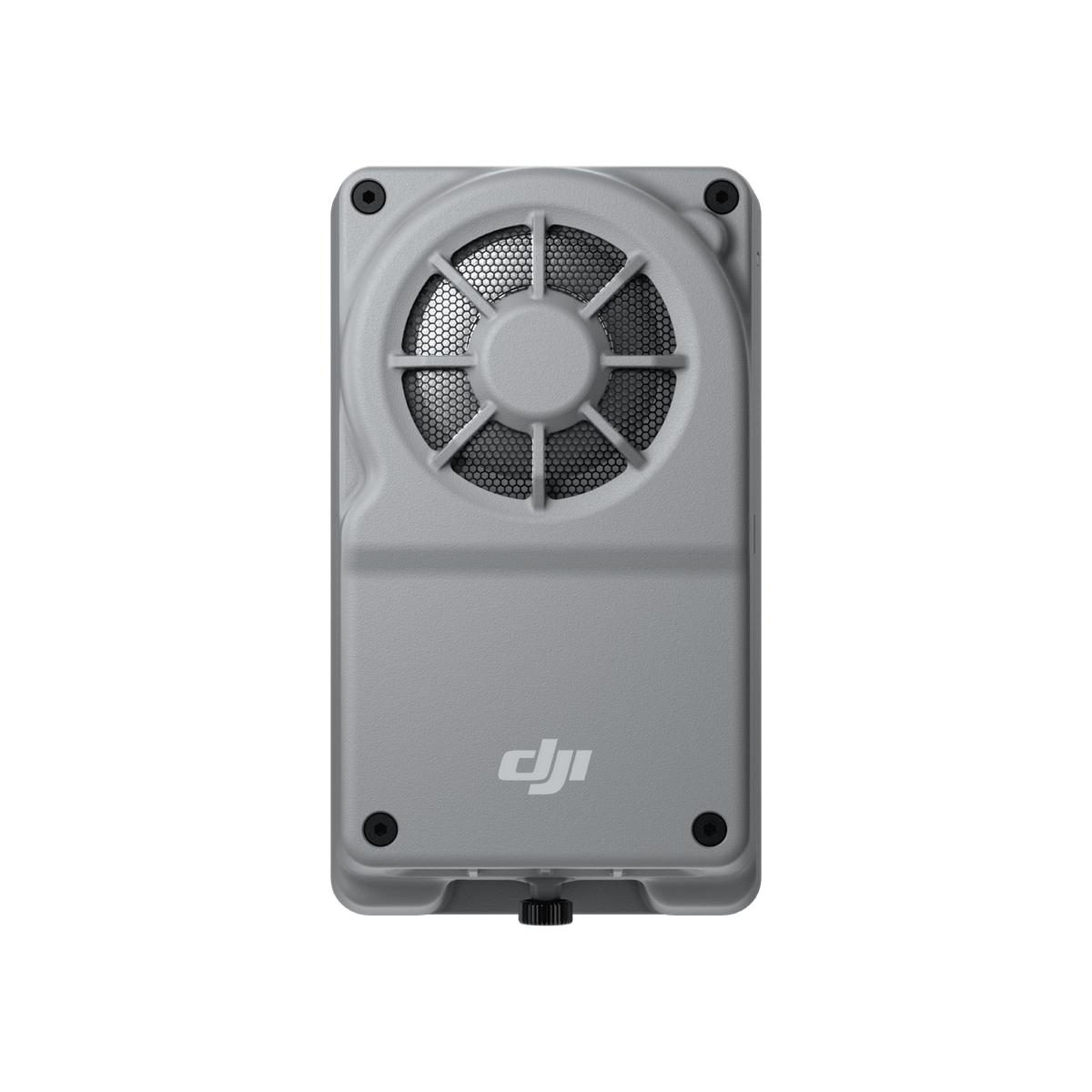

Manifold 3 is DJI's high-performance onboard computing box for enterprise drones. It runs edge AI and automation apps built on DJI's Payload SDK, with access to the aircraft's media and sensor data, flight control and route planning.
On the Matrice 4 Series it mounts to the top E-Port with the Manifold 3 Accessory Kit (Matrice 4 Series), which is sold separately. Apps install and run through DJI Pilot 2 or FlightHub 2, one app at a time.
Sources: DJI official, enterprise.dji.com/manifold-3/faq and developer.dji.com Manifold 3 overview. Image © DJI.
- Computing power: up to 100 TOPS (INT8, sparse; 60 TOPS GPU + 40 TOPS DLA)
- Memory and storage: 16 GB LPDDR5, 256 GB SSD
- Weight: 120 ± 5 g; size 98 × 57 × 36 mm; rated power 33 W
- Protection: IP55
- Software: Linux kernel 5.10, DJI PSDK 3.12.0, NVIDIA JetPack 5.1.3
- Supported aircraft: DJI Matrice 400, Matrice 4E / 4T, Matrice 4D / 4TD
