DJI

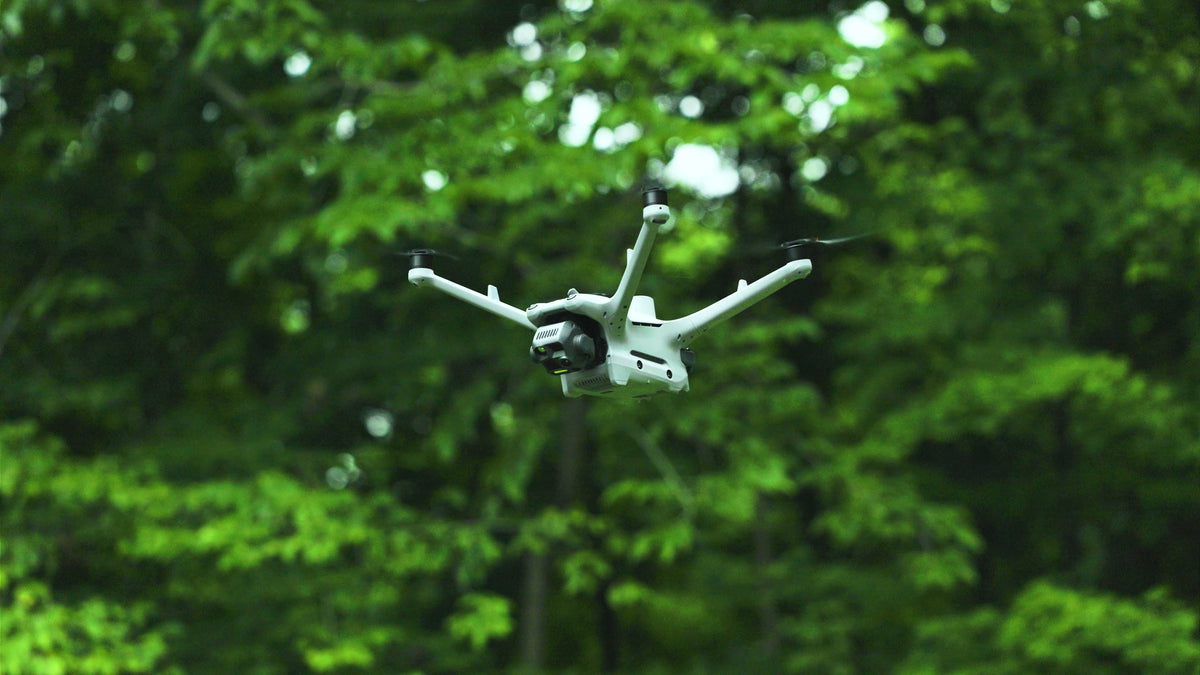

Matrice 4TD Wildlife Package
Authorized DJI Enterprise Dealer
$0.00
What this package adds
- Matrice 4TD and Dock 3 for thermal surveys and animal counts.
- Added: DJI RC Plus 2 Enterprise, DJI Matrice 4D Series Battery, DJI Matrice 4D Series 240W Charging Hub and 240W Power Adapter, DJI Matrice 4D Series Low-Noise Anti-Ice Propellers (spare pair), DJI Cellular Dongle 2, DJI FlightHub 2.
- First Responder Owned · Veteran Led
- Repair & fleet support in Ohio
DJI
Matrice 4TD Wildlife Package
In the box
What's in the box
DJI Matrice 4TD with DJI Dock 3, plus the items marked Added.
© DJI×1
DJI Matrice 4TD aircraft
© DJI×1
DJI Dock 3
© DJI×1Added
DJI RC Plus 2 Enterprise
© DJI×2Added
DJI Matrice 4D Series Battery
© DJI×1Added
DJI Matrice 4D Series 240W Charging Hub and 240W Power Adapter
- ×1Added DJI Matrice 4D Series Low-Noise Anti-Ice Propellers (spare pair)
© DJI×1Added
DJI Cellular Dongle 2
- ×1Added DJI FlightHub 2
Added items are genuine DJI accessories that DJI lists for the Matrice 4TD or Dock 3. Installation, network setup and DJI Care Enterprise are quoted separately.
Use cases
Built for
Image: Ohio Drone Repair
Deer and animal counts
Radiometric thermal over fields and tree lines.
Image: Ohio Drone Repair
Quiet flights
Low-noise propellers for less disturbance.
Image: Ohio Drone Repair
Repeat surveys
Scheduled routes from Dock 3.
Specifications
Specs
Aircraft
- Weight
- 1850 g
Note
This value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual weight may vary due to differences in batch materials and external factors. - Max Takeoff Weight
- 2090 g
- Dimensions
- 377.7×416.2×212.5 mm (L×W×H, without propellers)
- Wheelbase
- Diagonal Wheelbase: 498.5 mm; Front Motor Left-Right Wheelbase: 383.0 mm; Rear Motor Left-Right Wheelbase: 343.0 mm; Front-Rear Wheelbase: 341.6 mm
- Max Ascent Speed
- 6 m/s (Normal Mode); 10 m/s (Sport mode)
- Max Descent Speed
- 6 m/s (Normal Mode); 8 m/s (Sport mode)
- Max Horizontal Speed (at sea level, no wind)
- Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways; Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways; When used with DJI Dock, only Normal mode is supported.
- Max Wind Speed Resistance
- During Operation: 12 m/s; During Takeoff/Landing: 12 m/s
- Max Takeoff Altitude
- 6500 m
- Max Flight Time
- 54 minutes
Note
Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 12 m/s in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo-taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. - Max Hovering Time
- 47 minutes
Note
Measured with the DJI Matrice 4D Series drones hovering in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. - Max Operating Radius
- 10 km
Note
Measured in an environment of approximately 25° C (77° F) with a safe battery level of 15%, windless environment, round-trip flight speed of approximately 15 m/s, and hovering operation of 18 minutes. Results may vary depending on the environment, actual use, and firmware version. - Max Flight Distance
- 43 km
Note
Measured with Matrice 4D/4TD flying at a constant speed of 16 m/s in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. - Max Pitch Angle
- 25° (Normal Mode); 30° (Sport Mode)
- Max Angular Velocity
- 200°/s
- Global Navigation Satellite System
- GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)
- Hovering Accuracy Range (windless or breezy)
- Vertical: ±0.1 m (with vision positioning); ±0.5 m (with GNSS positioning); ±0.1 m (with RTK positioning); Horizontal: ±0.3 m (with vision positioning); ±0.5 m (with GNSS positioning); ±0.1 m (with RTK positioning)
- Operating Temperature
- -20° to 50° C (-4° to 122° F)
- Ingress Protection Rating
- IP55
- Motor Model
- 2611
- Propeller Model
- 1364F foldable low-noise anti-ice propellers
- RTK Module
- Integrated on the aircraft
- Beacon
- Integrated on the aircraft
- Stabilization
- 3-axis mechanical gimbal (tilt, roll, pan)
- Mechanical Range
- Tilt: -140° to +113°; Roll: -52° to +52°; Pan: -65° to +65°
- Controllable Range
- Tilt: -90° to +90°; Pan: Not controllable
Note
When the DJI Matrice 4TD gimbal tilts upwards at angles between +70° and +90°, the wide-angle camera, medium tele camera, and infrared thermal camera will be obstructed by the aircraft body. - Max Control Speed (tilt)
- 100°/s
- Angular Vibration Range
- ±0.005°
- Sensing Type
- Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
- Forward
- Measurement Range: 0.5 m to 20 m; Detection Range: 0.5 m to 200 m; Effective Sensing Speed: Flight Speed ≤ 15 m/s; FOV: Horizontal 95°, Vertical 90°
- Backward
- Measurement Range: 0.5 m to 20 m; Effective Sensing Speed: Flight Speed ≤ 12 m/s; FOV: Horizontal 95°, Vertical 90°
- Lateral
- Measurement Range: 0.5 m to 16 m; Effective Sensing Speed: Flight Speed ≤10 m/s; FOV: Horizontal 90°, Vertical 90°
- Upward
- Measurement Range: 0.5 m to 20 m; Effective Sensing Speed: Flight Speed ≤6 m/s; FOV:Front and Back 95°, Left and Right 90°
- Downward
- Measurement Range: 0.5 m to 16 m; Effective Sensing Speed: Flight Speed ≤6 m/s; FOV: Front and Back 90°, Left and Right 95°
- Operating Environment
- Forward, Backward, Upward and Downward: Surfaces with discernible patterns and adequate lighting (lux > 0.1); Left and Right: Diffuse reflective surface with diffuse reflectivity > 20% (e.g. walls, trees, people) and adequate lighting (lux > 6)
Camera
- Image Sensor
- Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP; Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP; Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP
- Lens
- Wide-Angle Camera: FOV: 82°; Format Equivalent: 24 mm; Aperture: f/1.7; Focus: 1 m to ∞; Medium Tele Camera: FOV: 35°; Format Equivalent: 70 mm; Aperture: f/2.8; Focus: 3 m to ∞; Tele Camera: FOV: 15°; Format Equivalent: 168 mm; Aperture: f/2.8; Focus: 3 m to ∞
- Lens Defogging
- Wide-angle, medium tele, and tele cameras all support lens defogging
- ISO Range
- Normal Mode: ISO 100-25600; Night Scene Mode: Wide-Angle Camera: ISO 100-409600; Medium Tele Camera: ISO 100-409600; Tele Camera: ISO 100-819200
- Shutter Speed
- 2-1/8000 s
- Max Image Size
- Wide-Angle Camera: 8064×6048; Medium Tele Camera: 8064×6048; Tele Camera: 8192×6144
- Minimum Photo Interval
- 0.7 s
- Still Photography Modes
- Wide-Angle Camera: Single: 12 MP/48 MP; Timed: 12 MP/48 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Capture: 12 MP; Panorama: 12 MP (raw image); 100 MP (stitched image); Medium Tele Camera: Single: 12 MP/48 MP; Timed: 12 MP/48 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Capture: 12 MP; Tele Camera: Single: 12 MP/48 MP; Timed: 12 MP/48 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Capture: 12MP
- Video Codec and Resolution
- Video Codec: H.264, H.265; Encoding Strategy: CBR, VBR; Resolution: 4K: 3840×2160@30fps; FHD: 1920×1080@30fps
- Video Bitrate
- H264: 60 Mbps; H265: 40 Mbps
- Supported File System
- exFAT
- Photo Format
- JPEG
- Video Format
- MP4 (MPEG-4 AVC/H.264)
- Digital Zoom
- Tele Camera: 16x (112x hybrid zoom)
- Laser Rangefinding
- Normal Incidence Range: 1800 m (1 Hz) @20% reflectivity target; Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz); Blind Zone: 1 m; Distance Measurement Accuracy: 1 m to 3 m: System Error <0.3 m, Random Error <0.1 m @1σ; Other Distances: ±(0.2+0.0015D) (Distance in meters)
Note
Performance degradation may occur in rainy or foggy conditions.
- Infrared Illumination
- FOV: 5.7°±0.3°
Thermal
- Thermal Imager
- Uncooled VOx Microbolometer
Note
DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned, leading to permanent damage. - Resolution
- 640×512
- Pixel Pitch
- 12 μm
- Frame Rate
- 30 Hz
- Lens
- DFOV: 45°; Format Equivalent: 53 mm; Aperture: f/1.0; Focus: 5 m to ∞
- Sensitivity
- ≤ 50 mk@F1.0
- Temperature Measurement Method
- Spot Measurement, Area Measurement
- Temperature Measurement Range
- -40° to 150° C (-40° to 320° F, High Gain Mode); 0° to 500° C (32° to 932° F, Low Gain Mode)
- Palette
- White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
- Photo Format
- JPEG (8-bit); R-JPEG (16-bit)
- Video Resolution
- 1280×1024@30fps (UHR Infrared Image function enabled, Night Scene mode not enabled); Other conditions: 640×512@30fps
- Video Bitrate
- 6.5Mbps (H.264 640×512@30fps); 5Mbps (H.265 640×512@30fps); 12Mbps (H.264 1280×1024@30fps); 8Mbps (H.265 1280×1024@30fps)
- Video Format
- MP4
- Still Photography Modes
- Single; Normal Mode: 640×512; UHR Infrared Image Mode: 1280×1024; Timed; Normal Mode: 640×512, 0.7/1/2/3/5/7/10/15/20/30/60 s; UHR Infrared Image Mode: 1280×1024, 0.7/1/2/3/5/7/10/15/20/30/60 s
- Digital Zoom
- 28x
- Infrared Wavelength
- 8-14 μm
- Infrared Temperature Measurement Accuracy
- High Gain: ±2℃ or ±2%, whichever is greater; Low Gain: ±5℃ or ±3%, whichever is greater
Transmission
- Video Transmission System
- DJI O4+ Enterprise
- Live View Quality
- 720p/30fps, 1080p/30fps (with DJI RC Plus 2 Enterprise); 540p/30fps, 720p/30fps, 1080p/30fps (with DJI Dock 3 and DJI FlightHub 2)
- Operating Frequency
- 2.400-2.4835 GHz; 5.150-5.250 GHz (CE: 5.170-5.250 GHz); 5.725-5.850 GHz
Note
The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations. - Max Transmission Distance (unobstructed, free of interference)
- FCC: 25 km; CE: 12 km; SRRC: 12 km; MIC: 12 km
Note
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in DJI FlightHub 2 or DJI Pilot 2 app during your flight. - Max Transmission Distance (unobstructed, with interference)
- Strong interference (dense buildings, residential areas, etc.): 1.5-5 km; Medium interference (suburban counties, city parks, etc.): 5-15 km; Weak interference (open spaces, remote areas, etc.): 15-25 km
Note
Data is tested under FCC standard in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. In obstructed environments, it is recommended to install the D-RTK 3 Relay Fixed Deployment Version. - Max Download Speed
- 20 MB/s (with DJI Dock 3); 20 MB/s (with DJI RC Plus 2 Enterprise)
Note
Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions. - Antenna
- 8 antennas, 2T4R
- Transmitter Power (EIRP)
- 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC); 5.1 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE); 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)
- Others
- Supports DJI Cellular Dongle 2
Note
Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
RC
- Max Transmission Distance (unobstructed, free of interference)
- FCC: 25 km; CE: 12 km; SRRC: 12 km; MIC: 12 km
Note
Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app. - Video Transmission Operating Frequency
- 2.4000-2.4835 GHz; 5.725-5.850 GHz (Not supported in Japan); 5.2 GHz (receive only)
Note
Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information. - Antenna
- 2T4R, built-in multi-beam high-gain antenna
- Video Transmission Transmitter Power (EIRP)
- 2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC); 5.2 GHz: ＜23 dBm (CE); 5.8 GHz: ＜33 dBm (FCC), ＜14 dBm (CE), ＜30 dBm (SRRC)
- 4G Transmission
- DJI Cellular Dongle 2
Note
Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details. - Wi-Fi Protocol
- Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax
Note
Supports 2×2 MIMO Wi-Fi, dual-band simultaneous (DBS) support for dual MAC, with data rates up to 1774.5 Mbps (2×2 + 2×2 11ax dual-band simultaneous) - Wi-Fi Operating Frequency
- 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz; 5.2 and 5.8GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
- Wi-Fi Transmitter Power (EIRP)
- 2.4 GHz: ＜26 dBm (FCC), ＜20 dBm (CE/SRRC/MIC); 5.2 GHz: ＜26 dBm (FCC), < 23 dBm (CE/SRRC/MIC); 5.8 GHz: ＜26 dBm (FCC/SRRC), ＜14 dBm (CE)
- Bluetooth Protocol
- Bluetooth 5.2
- Bluetooth Operating Frequency
- 2.400-2.4835 GHz
- Bluetooth Transmitter Power (EIRP)
- ＜10 dBm
- Screen Resolution
- 1920 × 1200
- Screen Size
- 7.02 inches
- Screen Frame Rate
- 60 fps
- Brightness
- 1400 nit
- Touchscreen Control
- 10 Points Multi-touch
- Built-in Battery
- 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8Wh
- External Battery
- Optional, WB37 (4920 mAh @ 7.6 V) 37Wh
- Charging Type
- Supports PD fast charging, with a maximum 20V/3.25A USB Type-C charger
- Storage Capacity
- RAM 8G + ROM 128G UFS + expandable storage via microSD card
- Charging Time
- 2 hours for internal battery; 2 hours for internal plus external batteries.; When remote controller is powered off and using a standard DJI charger.
- Internal Battery Runtime
- 3.8 hours
- External Battery Runtime
- 3.2 hours
- Output Port
- HDMI 1.4
- Indicators
- Status LED, battery level LED, connection status LED, tricolor light, brightness adjustable according to ambient light
- Speaker
- Supports buzzer
- Audio
- Array MIC
- Operating Temperature
- -20° to 50° C (-4° to 122° F)
- Storage Temperature
- Within one month: -30° to 45° C (-22°F to 113°F); One to three months: -30° to 35° C (-22°F to 95°F); Three months to one year: -30° to 30° C (-22°F to 86°F)
- Charging Temperature
- 5° to 40° C (41° to 104° F)
- Supported Aircraft Models
- Supports Matrice 4TD/4D, Matrice 4T/4E
- Global Navigation Satellite System
- GPS, Galileo, BeiDou.
- Dimensions
- 268×163×94.5 mm (L×W×H); Width including external antenna folded, thickness including handle and controller sticks.
- Weight
- 1.15 kg (without external battery)
- Model
- TKPL 2
- System Version
- Android 11
- External Interfaces
- HDMI 1.4, SD 3.0, Type-C with OTG support, max 65W PD charging, USB-A with USB 2.0 support
- Accessory
- Optional strap/waist support
Battery
- Capacity
- 6768 mAh
- Voltage
- 22.14 V
- Max Charging Voltage
- 25.5 V
- Cell Type
- Li-ion 6S
- Chemical System
- LiNiMnCoO2
- Energy
- 149.9 Wh
- Weight
- 640 g
- Cycle Count
- 400
- Charging Temperature
- 5° to 45° C (41° to 113° F)
- Discharge Rate
- 4C
- Max Charging Power
- 1.8C
- Low-Temperature Charging
- Supports low-temperature self-heating charging
- Input
- SDC: 16.8 V to 25.5 V, 12.1 A
- Rated Power
- 240 W
- Charging Type
- 3 batteries charging in sequence; Support Standard Mode (100% SOC) and Ready-to-Fly Mode (90% SOC)
- Compatible Battery
- DJI Matrice 4D Series Battery
- Charging Temperature
- 5° to 40° C (41° to 104° F)
- Input
- 100-240 V (AC), 50/60 Hz, 3 A
- Output Power
- 240 W
- Output
- Total: 240W max output power; USB-C Port: 65W max output power; When charging with two ports simultaneously, the USB-C port's max output power is 45 W.
Copied from DJI's official spec page for the Matrice 4TD on 2026-10-11. Values are DJI's; notes are DJI footnotes. Source: enterprise.dji.com/dock-3/specs
NDAA and Blue UAS
Some agencies and funding sources limit which drones can be bought. What applies depends on your agency, your state and your funding.
FAQ
Questions
Is it quiet?
The Matrice 4TD ships with DJI low-noise anti-ice propellers, and this package adds a spare pair.
Does the 4TD need the dock to fly?
No. DJI says the Matrice 4D Series also flies manually with the DJI RC Plus 2 Enterprise, which is in this package.
Is this aircraft NDAA compliant or grant eligible?
Rules depend on your agency, your state and where the money comes from. Our NDAA and Blue UAS page explains what applies and what we can offer if you need a compliant aircraft.
What happens if it needs repair?
We repair the Matrice 4 Series in-house in Akron and take ship-ins from anywhere in the U.S. DJI warranty terms apply, and a DJI Care Enterprise plan can be added when we quote.
