DJI

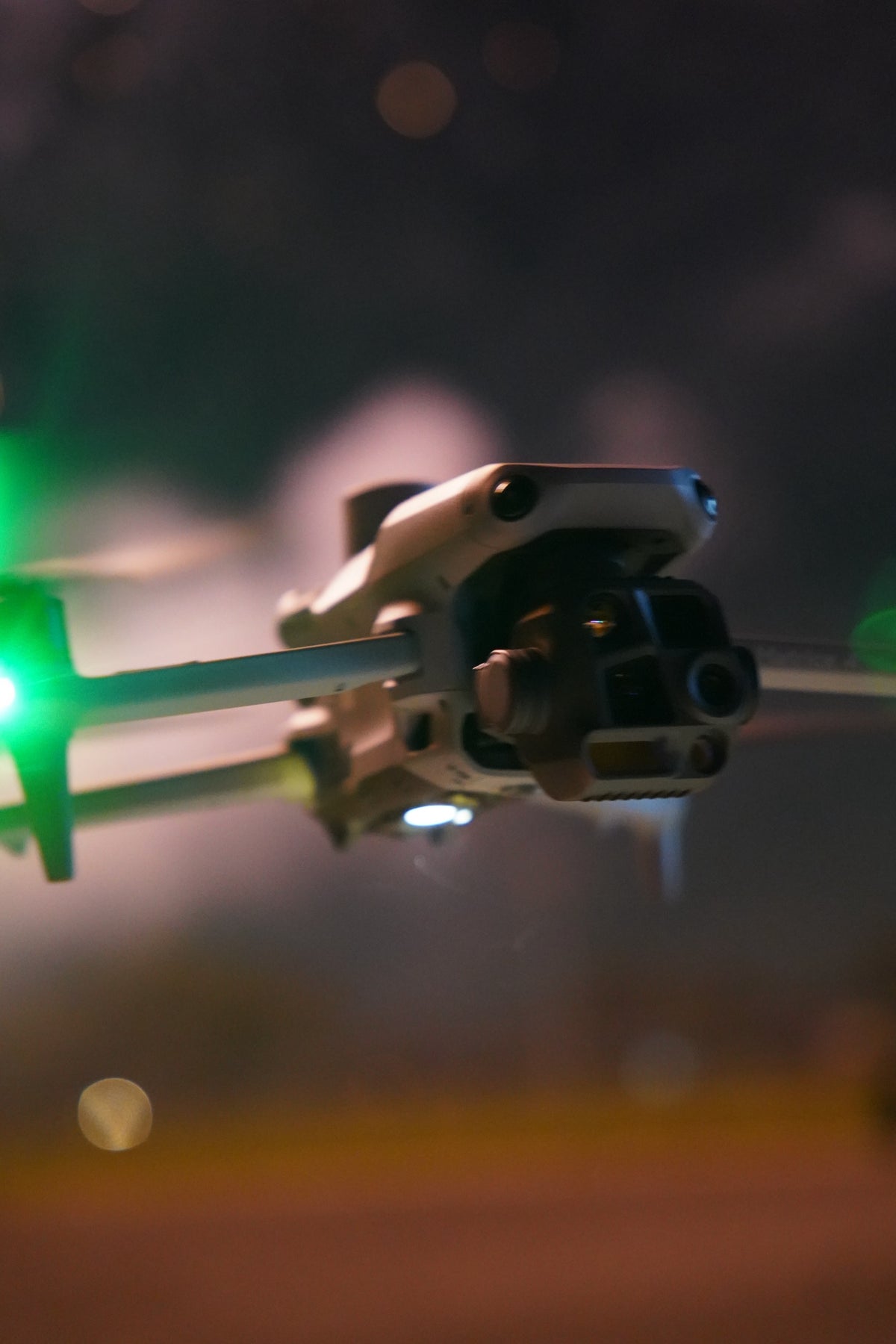

Matrice 4T Utility & Infrastructure Edition
Authorized DJI Enterprise Dealer
$0.00
What this edition adds over Core
- Close Inspection: the DJI Propeller Guard for tight work around towers, structures and under bridges.
- Field charging: an AK M4T8 600 W case charges eight batteries at once; four flight batteries in the kit.
- RTK ready: a GPC case that holds the D-RTK 3, with the D-RTK 3 base kit as an add-on.
- First Responder Owned · Veteran Led
- Repair & fleet support in Ohio
DJI
Matrice 4T Utility & Infrastructure Edition
In the box
What's in the box
Everything in Matrice 4T Core, plus the items marked Added.
© DJI×1
DJI Matrice 4T aircraft
© DJI×1
DJI Matrice 4 Series Battery
© DJI×1
DJI RC Plus 2 Enterprise
© DJI×1
DJI 100W USB-C Power Adapter
© DJI×1
DJI Matrice 4 Series Charging Hub
© DJI×1
microSD card
© DJI×1
DJI Matrice 4T Gimbal Protector
© DJI×1
DJI Cellular Dongle 2 Pry Bar
© DJI×3
DJI Matrice 4 Series Propellers (pair)
© DJI×1
100W Power Adapter AC Cable
© DJI×2
USB-C to USB-C Data Cable
© DJI×1
DJI Matrice 4 Series Storage Case
© DJI×1
DJI Matrice 4 Series Storage Case Shoulder Strap
© DJI×1Added
DJI Matrice 4 Series Propeller Guard
- © DJI×3Added
DJI Matrice 4 Series Battery
© AK×1Added
AK M4T8 600W Matrice 4 Charging Case
© DJI×1Added
DJI WB37 Intelligent Battery
© DJI×1Added
DJI Cellular Dongle 2
© GPC×1Added
GPC DJI Matrice 4 & D-RTK 3 Case
© Hoodman×1Added
Hoodman HDLP3 3 ft Weighted Launch & Landing Pad
Added items are genuine DJI accessories or products from the brands named. Items marked Pending are awaiting confirmation before they ship in this kit. Core is DJI's standard Matrice 4T package. DJI Care Enterprise is not included and can be quoted separately.
Use cases
Built for
© DJI
Electrical and substations
Radiometric thermal of connections, transformers and lines, with spot and area readings.
© DJI
Towers
Thermal and 168 mm zoom detail on towers and attachments.
© DJI
Bridges and structures
Close approaches with the propeller guard fitted.
Image: Ohio Drone Repair
Solar
Find hot cells and failed strings across arrays.
© DJI
Line patrol
Long corridors with eight batteries charging in the truck.
© DJI
Repeatable mapping
Built-in RTK, with the D-RTK 3 base as an add-on where network RTK is weak.
Specifications
Specs
Aircraft
- Takeoff Weight (with propellers)
- 1219 g
Note
The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. - Takeoff Weight (with Low-Noise propellers)
- 1229 g
Note
The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. - Max Takeoff Weight
- Standard Propellers: 1420 g; Low-Noise Propellers: 1430 g
- Dimensions
- Folded: 260.6×113.7×138.4 mm (L×W×H); Unfolded: 307.0×387.5×149.5 mm (L×W×H); Maximum dimensions excluding propellers.
- Max Payload
- 200 g
- Propeller Size
- 10.8 in
- Diagonal Wheelbase
- 438.8 mm
- Max Ascent Speed
- 10 m/s
- Maximum Ascent Speed With Accessories
- 6 m/s
- Max Descent Speed
- 8 m/s
- Max Descent Speed With Accessories
- 6 m/s
- Max Horizontal Speed (at sea level, no wind)
- 21 m/s; 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways
- Max Altitude
- 6000 m
- Max Operating Altitude with Payload
- 4000 m
- Max Flight Time (without wind)
- 49 min (standard propellers); 46 min (low-noise propellers)
Note
Measured with the aircraft flying at approximately 9 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app. - Max Hover Time (without wind)
- 42 min (standard propellers); 39 min (low-noise propellers)
Note
Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%. - Max Flight Distance (no wind)
- 35 km (standard propellers); 32 km (low-noise propellers)
Note
Measured with the aircraft flying at approximately 14 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app. - Max Wind Speed Resistance
- 12 m/s
Note
Max wind speed resistance during takeoff and landing. - Max Pitch Angle
- 35°
- Operating Temperature
- -10℃ to 40℃ (14°F to 104°F)
- GNSS
- GPS + Galileo + BeiDou + GLONASS
Note
GLONASS is supported only when the RTK module is enabled. - Hovering Accuracy Range (windless or breezy)
- ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
- RTK GNSS Accuracy
- RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
- Internal Storage
- N/A
- Ports
- E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported); E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices.; Accessories or expansion modules must be installed before powering on.
- Propeller Model
- 1157F (standard propellers); 1154F (low noise propeller)
- Beacon
- Built into the aircraft
- Stabilization System
- 3-axis (tilt, roll, pan)
- Mechanical Range
- Gimbal Mechanical Limits: Tilt: -140° to 113°; Roll: -52° to 52°; Pan: -65° to 65°; Soft Limits: Tilt: -90° to 35°; Roll: -47° to 47°; Pan: -60° to 60°
- Controllable Rotation Range
- Tilt: -90° to 70°; Pan: Not controllable
- Max Control Speed (tilt)
- 100°/s
- Angular Vibration Range
- ±0.007°
- Yaw Axis
- Manual operation is uncontrollable; The MSDK interface program is controllable.
- Ingress Protection Rating
- No Standard Protection Level
- Operating Temperature
- Standard: -10°C to 40°C (14°F to 104°F)
- Sensing Type
- Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
- Forward
- Binocular Measurement Range: 0.4-22.5 m; Measurement Range: 0.4-200 m; Obstacle Avoidance Speed: Flight Speed ≤21 m/s; FOV: 90° (horizontal), 135° (vertical)
- Backward
- Measurement Range: 0.4-22.5 m; Measurement Range: 0.4-200 m; Obstacle Avoidance Speed: Flight Speed ≤21 m/s; FOV: 90° (horizontal), 135° (vertical)
- Lateral
- Measurement Range: 0.5-32 m; Measurement Range: 0.5-200 m; Obstacle Avoidance Speed: Flight Speed ≤21 m/s; FOV: 90° (horizontal), 90° (vertical)
- Downward
- Measurement Range: 0.3-18.8 m; Obstacle Avoidance Speed: Flight Speed ≤10 m/s; The FOV to the front and rear is 160° and 160° to the right and left.
- Operating Environment
- Forward, Backward, Left, Right, and Upward: Delicate texture on the surface, adequate light.
Note
The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.). Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.
Camera
- Image Sensor
- Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP; Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP; Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP
- Lens
- FOV: 82°; Equivalent Focal Length: 24 mm; Aperture: f/1.7; Focus: 1 m to ∞; Medium Tele Camera: FOV: 35°; Equivalent Focal Length: 70 mm; Aperture: f/2.8; Focus: 3 m to ∞; Tele camera: FOV: 15°; Equivalent Focal Length: 168 mm; Aperture: f/2.8; Focus: 3 m to ∞
- ISO Range
- Normal Mode: ISO 100 to ISO 25600; Night Scene Mode: Wide Camera: ISO 100 to ISO 409600; Medium Tele Camera: ISO 100 to ISO 409600; Tele Camera: ISO 100 to ISO 819200
- Shutter Speed
- 2-1/8000 s
- Max Photo Size
- Wide: 8064 × 6048; Medium Telephoto: 8064 × 6048; Telephoto: 8192 × 6144
- Minimum Photo Interval
- 0.7 s
- Still Photography Modes
- Wide: Single: 12 MP/48 MP; Interval: 12 MP/48 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Shooting: 12MP; Panorama: 12 MP (raw image);100 MP (stitched image); Medium Tele Camera: Single: 12 MP and 48 MP; Interval: 12 MP/48 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Shooting: 12MP; Telephoto: Single: 12 MP and 48 MP; Interval: 12 MP/48 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Shooting: 12MP
- Video Codec and Resolution
- Video Coding Format: H.264/H.265; Coding Strategy: CBR, VBR; Resolution: 4K: 3840 × 2160@30fps; FHD: 1920 × 1080@30fps
- Max Video Bitrate
- H.264: 60Mbps; H.265: 40Mbps
- Supported File System
- exFAT
- Photo Format
- JPEG
- Video Format
- MP4 (MPEG-4 AVC/H.264)
- Digital Zoom
- Telephoto: 16x (112x hybrid zoom)
- Laser Rangefinding
- Measurement Range: 1800 m (1 Hz) @20% reflectivity target; Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz); Blind Zone: 1 m; Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ; Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)
Note
Performance degradation may occur in rainy or foggy conditions
- Infrared Illumination
- FOV: 5.7°±0.3°
Thermal
- Thermal Imager
- uncooled vanadium oxide (VOx)
Note
DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage. - Resolution
- 640 × 512
- Pixel Pitch
- 12 μm
- Frame Rate
- 30 Hz
- Lens
- DFOV: 45°±0.3°; equivalent focal length: 53 mm; Aperture: f/1.0; Focus: 5 m to ∞
- Sensitivity
- ≤50mk@F1.0
- Temperature Measurement Method
- Spot Meter, Area Measurement
- Temperature Measurement Range
- High Gain Mode: -20℃ to 150℃ (-4°F to 302°F); Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)
- Palette
- White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
- Photo Format
- JPEG (8bit)、 R-JPEG (16bit)
- Video Resolution
- 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated); Other conditions: 640 × 512@30fps
- Video Bitrate
- 6.5Mbps (H.264 640 × 512@30fps); 5Mbps (H.265 640 × 512@30fps); 12Mbps (H.264 1280 × 1024@30fps); 8Mbps (H.265 1280 × 1024@30fps)
- Video Format
- MP4
- Still Photography Modes
- Single: 1280 × 1024/640 × 512; Interval: 1280 × 1024/640 × 512; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
- Photo Resolution
- Infrared: 1280 × 1024 (Super Resolution on); 640 × 512 (Super Resolution off)
- Digital Zoom
- 28x
- Infrared Wavelength
- 8um to 14um
- Infrared Temperature Measurement Accuracy
- High Gain: ±2℃ or ±2%, whichever is greater; Low Gain: ±5℃ or ±3%, whichever is greater
Transmission
- Video Transmission System
- O4 Enterprise
- Live View Quality
- Remote Controller: 1080p/30fps
- Operating Frequency
- 2.400-2.4835 GHz; 2.400-2.4835 GHz; 5.725-5.850 GHz; 5.150-5.250 GHz (CE)
Note
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. - Transmitter Power (EIRP)
- 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC); 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE); 5.15-5.25: < 23 dBm (FCC/CE)
- Max Transmission Distance (unobstructed, free of interference)
- 25 km (FCC); 12 km (CE); 12 km (SRRC); 12 km (MIC)
Note
Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app. - Max Transmission Distance (with interference)
- Strong Interference - City Centers (approx. 1.5-5 km); Medium Interference - Suburban Areas (approx. 5-15 km); Micro interference: Suburbs/Seasides (approx. 15-25 km)
Note
Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. - Max Download Speed
- 20 MB/s
Note
The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference. - Latency (depending on environmental conditions and mobile device)
- 130 ms
Note
Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens. - Antenna
- 8 antennas, 2T4R
- Others
- Cellular Dongle Compartment
RC
- Video Transmission System
- O4 Enterprise
- Max Transmission Distance (unobstructed, free of interference)
- 25 km (FCC); 12 km (CE); 12 km (SRRC); 12 km (MIC)
Note
Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app. - Operating Band of Image Transmission
- 2.4000-2.4835 GHz; 5.725 - 5.850 GHz; 5.1GHz (receive only)
Note
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. - Antenna
- 2T4R, built-in multi-beam high-gain antenna
- Video Transmission Transmitter Power (EIRP)
- 2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC); 5.1 GHz: <23 dBm (CE); 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
- 4G Transmission
- DJI Cellular Dongle 2
- Wi-Fi Protocol
- Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax; Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)
- Wi-Fi Operating Band
- 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz; 5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
- Wi-Fi Transmitter Power (EIRP)
- 2.4 GHz: ＜26 dBm (FCC), ＜20 dBm (CE/SRRC/ MIC); 5.1 GHz: <23 dBm (FCC); 5.8 GHz ＜23 dBm (FCC/SRRC), ＜14 dBm (CE)
- Bluetooth Protocol
- Bluetooth 5.2
- Bluetooth Operating Frequency
- 2.400-2.4835 GHz
- Bluetooth Transmitter Power (EIRP)
- <10 dBm
- Screen Resolution
- 1920 × 1200
- Screen Size
- 7.02 inches
- Screen Frame Rate
- 60 fps
- Brightness
- 1400 nits
- Touchscreen Control
- 10 Points Multi-touch
- Built-in Battery
- 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
- External Battery
- Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
- Recharging Type
- Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.
- Storage Capacity
- ROM 128 G + expandable storage via microSD card
- Charging Time
- 2 hrs for internal battery or internal and external battery.; When remote controller is powered off and using a standard DJI charger.
- Internal Battery Runtime
- 3.8 hrs
- External Battery Runtime
- 3.2 hrs
- Output Port
- HDMI 1.4
- Indicators
- Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness.
- Speaker
- Supports buzzer
- Audio
- Array MIC
- Operating Temperature
- -20° to 50° C (-4°F to 122°F)
- Storage Temperature
- Within one month: -30° to 45° C (-22°F to 113°F); One to three months: -30° to 35° C (-22°F to 95°F); Three months to one year: -30° to 30° C (-22°F to 86°F)
- Recharging Temperature
- 5° to 40° C (41°F to 104°F)
- Supported Aircraft Models
- Support for Matrice 4T/4E
- GNSS
- GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh.
- Dimensions
- 268×163×94.5 mm (L×W×H); Width including external antenna folded, thickness including handle and controller sticks.
- Weight
- 1.15 kg (without external battery)
- Model
- TKPL 2
- System Version
- Android 11
- External Interfaces
- HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface.
- Accessory
- Optional strap/waist support
Battery
- Capacity
- 6741 mAh
- Standard Voltage
- 14.76 V
- Max Charging Voltage
- 17.0 V
- Cell Type
- Li-ion 4S
- Energy
- 99.5 Wh
- Weight
- 401 g
- Recharging Temperature
- 5°C to 40°C (41°F to 104°F)
- Discharge Rate
- 4C
- Max Charging Power
- 1.8C
- Supports low-temperature charging
- Not supported
- Cycle Count
- 200
- Input
- USB-C: 5-20 V, max 5 A
- Output
- Battery Interface: 11.2 V to 17 V
- Rated Power
- 100 W
- Recharging Type
- 4 batteries charging in sequence; Support Standard Mode (100% SOC) and Standby Mode (90% SOC)
- Compatible Battery
- DJI Matrice 4E/T Series Intelligent Flight Battery
- Charging Temperature
- 5° to 40° C (41°F to 104°F)
- Input
- 100-240 V (AC), 50-60 Hz, 2.5 A
- Output
- Max. 100 W (total)
Note
When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load. - Rated Power
- 100 W
Copied from DJI's official spec page for the Matrice 4T on 2026-10-11. Values are DJI's; notes are DJI footnotes. Source: enterprise.dji.com/matrice-4-series/specs
NDAA and Blue UAS
Some agencies and funding sources limit which drones can be bought. What applies depends on your agency, your state and your funding.
FAQ
Questions
What does this edition add to Core?
The DJI Matrice 4 Series Propeller Guard, three more flight batteries (four total), an AK M4T8 600W charging case, a WB37 controller battery, a DJI Cellular Dongle 2, a GPC DJI Matrice 4 & D-RTK 3 Case and a Hoodman 3 ft pad. No spotlight or speaker.
Is there a parachute for the Matrice 4T?
Not from DJI or the brands we carry. Third-party parachutes exist, but we have not verified one we can offer for this kit.
Which RTK option should I add?
The Matrice 4T has built-in RTK. With network RTK you need nothing more. Without it, add the DJI D-RTK 3 Multifunctional Station and Survey Pole and Tripod Kit as your own base. The GPC case in this kit has room for it.

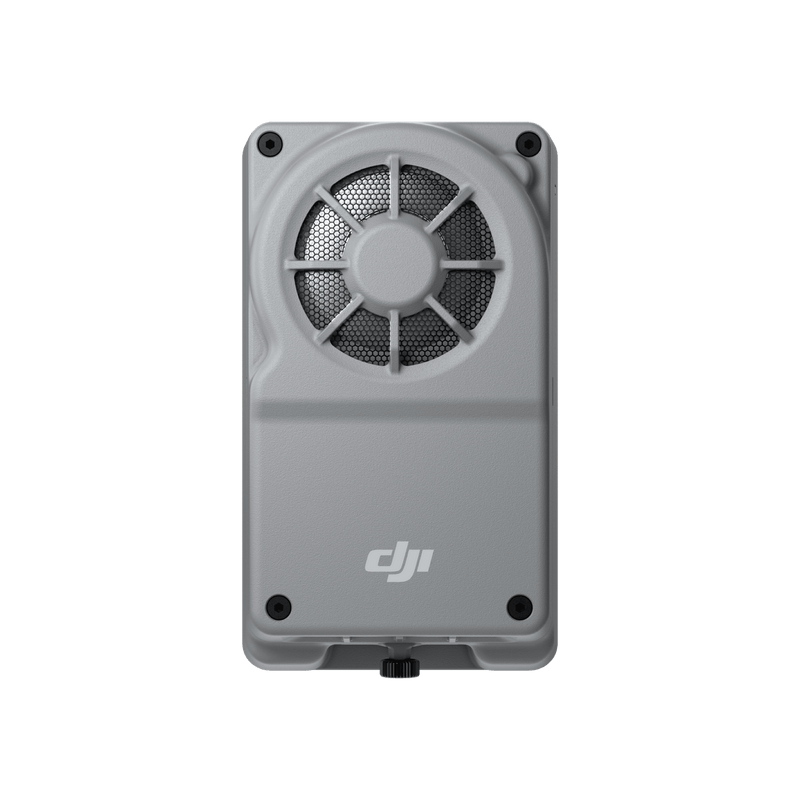

What is Manifold 3?
DJI's onboard computer (up to 100 TOPS) for PSDK inspection and AI apps. On the Matrice 4 Series it mounts on the top E-Port with the Manifold 3 Accessory Kit (Matrice 4 Series).
Does the propeller guard change flight time?
It adds weight, so plan for shorter flights. DJI's published flight times are for the standard and low-noise propellers.
What happens if it needs repair?
We repair the Matrice 4 Series in-house in Akron and take ship-ins from anywhere in the U.S. DJI warranty terms apply. Partner accessories carry their maker's warranty.
Accessories
